Section 42.1 Mutual Inductance

From Faraday's law we learn that changing magntic flux through surface attached to a loop will induce EMF in the loop. Therefore, we would not be surprised if we find that two separate circuits carrying time-varying currents next to each other will induce EMF's in each other. This should happen since current of each circuit will paroduce magnetic field at the location of the other circuit. A changing current would produce a changing magnetc field, which will lead to a changing magnetic flux thereby inducing an EMF.

To study this effect closely let us consider two circuits or loops \(C_1\) and \(C_2\) fixed in their position relative to one another as shown in Figure 42.1.1.

Let current \(I_1\) flow through circuit \(C_1\text{.}\) This current will produce a position dependent magnetic field \(\vec B_1\text{.}\) Let \(\Phi_{21}\) be the magnetic flux of field \(\vec B_1\) through the area of an open surface \(S_2\) attached to loop \(C_2\text{.}\)

Figure 42.1.1.

Since \(\vec B_1\) is proportional to \(I_1\text{,}\) we expect the flux of \(\vec B_1\) to be also proportional to \(I_1\text{.}\)

\begin{equation*} \vec B_1\propto I_1\ \ \Longrightarrow \ \Phi_{21} \propto I_1. \end{equation*}

We can write this as an equality by introducing a proportionality constant which we will write as \(\mathcal{M}\text{.}\)

\begin{equation} \Phi_{21} = \mathcal{M} I_1. \label{eq-mutual-induct-1}\tag{42.1.1} \end{equation}

Constant \(\mathcal{M}\) is called the coefficient of mutual inductance of the two circuits. Mutual inductance only depends on the geometry of the two circuits, their separation and the magnetic properties of the medium. The SI unit for \(\mathcal{M}\) is known as Henry (\(\text{H}\)).

\begin{equation*} \text{Unit of } \mathcal{M} : \frac{\text{T.m}^2}{A} \text{ or } \Omega.\text{sec} \text{ or } \text{ Henry(H)}. \end{equation*}

Using Eq. (42.1.1), the EMF induced in circuit 2 by a changing current in circuit 1 will be given by Faraday's flux rule.

\begin{equation} \mathcal{E}_2 = - \frac{\Delta \Phi_{21}}{\Delta t} = - \mathcal{M} \frac{\Delta I_1}{\Delta t}. \tag{42.1.2} \end{equation}

In the limit of \(\Delta t\rightarrow 0\text{,}\) we will get instantaneous equation.

\begin{equation} \mathcal{E}_2 (t) = - \mathcal{M} \frac{d I_1}{d t},\label{eq-mutual-induct-2}\tag{42.1.3} \end{equation}

where I have written \(\mathcal{E}_2 (t)\) to emphasize that this is EMF at instant \(t\text{.}\)

We use mutual inductance in AC transformers, where we vary current in one circuit to induce current in another even though the two circuits are not physically connected. By controlling the number of turns in each circuit we can magnify or reduce current induced.

Subsection 42.1.1 Symmetry of Mutual Inductance

In the above we have defined mutual inductance of two circuits based on the magnetic flux through \(C_2\) by the current in the circuit \(C_1\text{.}\) Let us call mutual inductance obtained this way by \(\mathcal{M}_{21}\text{.}\) The circuit for this situation is shown in Figure 42.1.1.

What would happen if we reversed the situation, i.e. pass a current \(I_2\) in circuit \(C_2\) and studied the magnetic flux of the magnetic field \(\vec B_2\) through circuit \(C_1\) as shown in Figure 42.1.2? Let us denote the mutual inductance here by \(\mathcal{M}_{12}\text{.}\)

In this case, we will have the flux \(\Phi_{12}\) through a surface attached to the loop of circuit \(C_1\) in terms of the current in circuit \(C_2\) as

\begin{equation} \Phi_{12} = \mathcal{M}_{12} I_2, \label{eq-mutual-induct-3}\tag{42.1.4} \end{equation}
Figure 42.1.2.

We will not prove here, but you can try to prove that the two mutual inductances, \(\mathcal{M}_{21}\) and \(\mathcal{M}_{12}\text{,}\) must be equal, and we represent them by the same symbol \(\mathcal{M}\text{.}\)

\begin{equation} \mathcal{M}_{12} = \mathcal{M}_{21} =\mathcal{M}. \label{eq-mutual-induct-4}\tag{42.1.5} \end{equation}

Since mutual inductance does not depend on which circuit we choose to send current through, we exploit this symmetry to do calculations for mutual inductance as illustrated below.

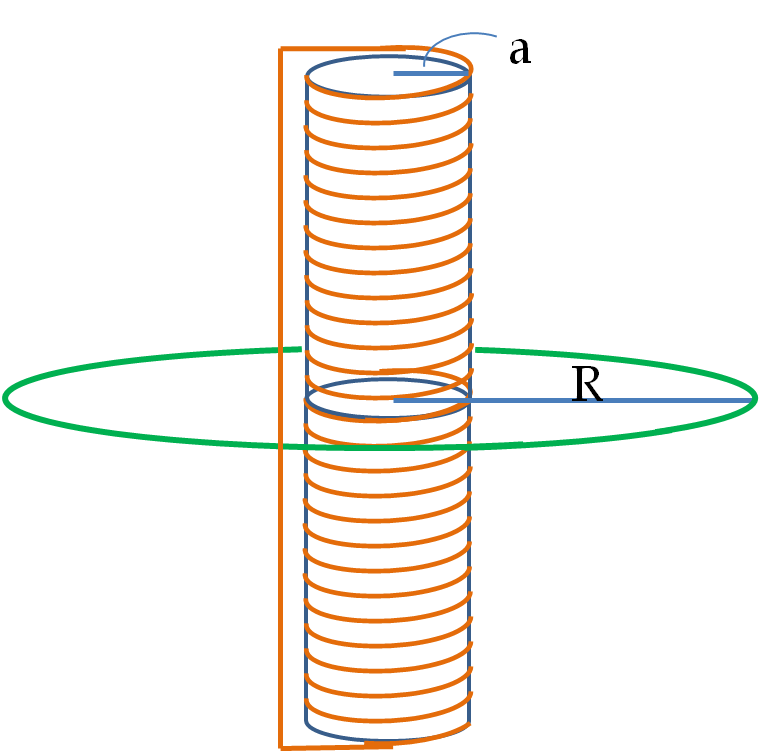

A solenoid loop \(C_1\) consists of \(n\) circular loops of radius \(a\) per unit length as shown in Figure 42.1.4.

Another circuit \(C_2\) of a circular loop of radius \(R\) surrounds the solenoid such that the solenoid is at the axis of the second loop. Assume that the length of the solenoid is much greater than the radius of the solenoid so that we can use the infinite solenoid approximation.

Figure 42.1.4.

(a) Find the mutual inductance of the two loops from the flux of current in \(C_1\) through the area of a surface attached to the circuit \(C_2\text{.}\) Assume \(a\lt \lt R\text{.}\)

(b) (Calculus) Find the mutual inductance of the two loops from the flux of current in \(C_2\) through the area of a surface attached to the circuit \(C_1\text{,}\) and demonstrate the two methods give rise to the same formula for the mutual inductance. Assume \(a\lt \lt R\text{.}\)

Hint 1 (a)

Introduce current \(I\) in one circuit and find magnetic flux of this current through the other circuit.

Hint 2 (b)

Try to set up problem for flux through loops in range \(z\) and \(z+dz\) and then integrate.

Answer

\(\pi \mu_0 n a^2\text{.}\)

Solution 1 (a)

(a) Calculation of mutual inductance by using current through the long solenoid.

We need magnetic flux through one circuit by current in the other circuits. Since the magnetic field of a long solenoid is easy to work with, we will think of an arbitrary current \(I\) in the solenoid as shown in Figure 42.1.5. This \(I\) will cancel out in the end, so we do not worry about its value.

Figure 42.1.5.

Since, the solenoid is very long, the magnetic field is significant only inside the space of the solenoid. We use a cylindrical coordinate with the \(z\)-axis along the axis of the solenoid and the circular loop in the \(xy\)-plane. Let \(s\) be the distance of a point from the axis, i.e. the radial distance in the \(xy\)-plane.

The direction of the magnetic field for the current direction chosen in the figure is towards the positive \(z\) axis and has magnitude given by the following step function.

\begin{equation*} B_{\text{solenoid}} = \begin{cases} \mu_0 n I \amp\ \ s \lt a\\ 0 \amp\ \ s \ge a \end{cases} \end{equation*}

We attach a circular surface to the circular wire \(C_2\) to find the flux through \(C_2\text{.}\) Let \(\hat u_z\) be the normal to the surface. Since the magnetic field is zero outside the solenoid, the magnetic flux through \(C_2\) comes only from the field in the area of the circular loop that is within the cross-section of the solenoid. This gives the following for the magnetic flux \(\Phi_2\) through \(C_2\text{.}\)

\begin{equation*} \Phi_2 = \mu_0 n I\times \pi a^2. \end{equation*}

Dividing out the current gives the mutual inductance between the two circuits.

\begin{equation*} \mathcal{M} = \pi \mu_0 n a^2. \end{equation*}

Although, this formula does not look like it is symmetric in switiching properties of circuits 1 and 2. In (b), you will see that you get exactly the same expression when you switch the current on in the loop and compute the flux in the solenoid.

Solution 2 (b)

(b) Calculation of mutual inductance by using current through the circular loop.

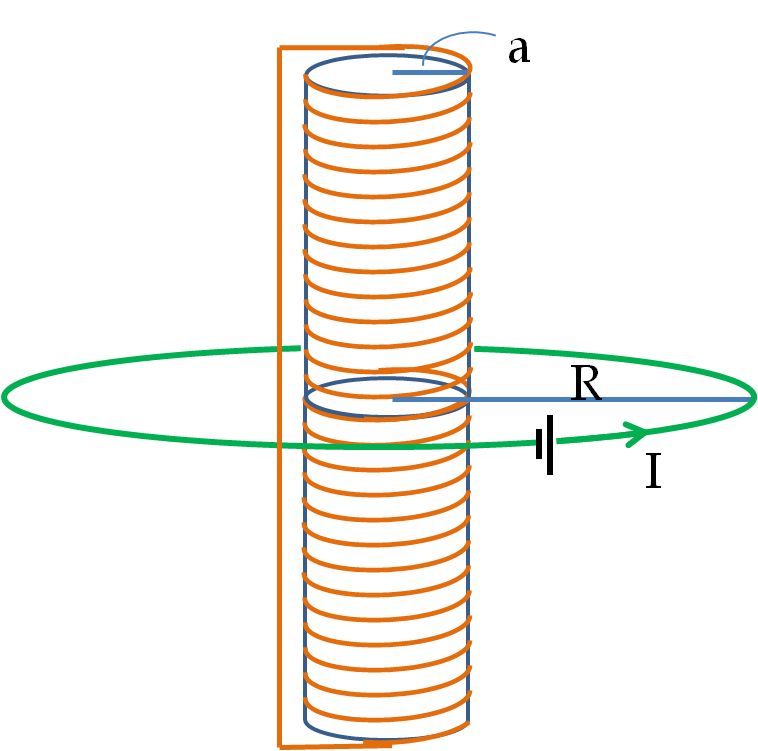

Now, we imagine passing a current \(I\) through the loop around the solenoid so that a current \(I\) as shown in Figure 42.1.6. Magnetic field of this current will pass everwhere, and in particular, through a surface attached to the wires of the solenoid. We will find a formula for this flux by summing over the flux through each ring of the solenoid.

Figure 42.1.6.

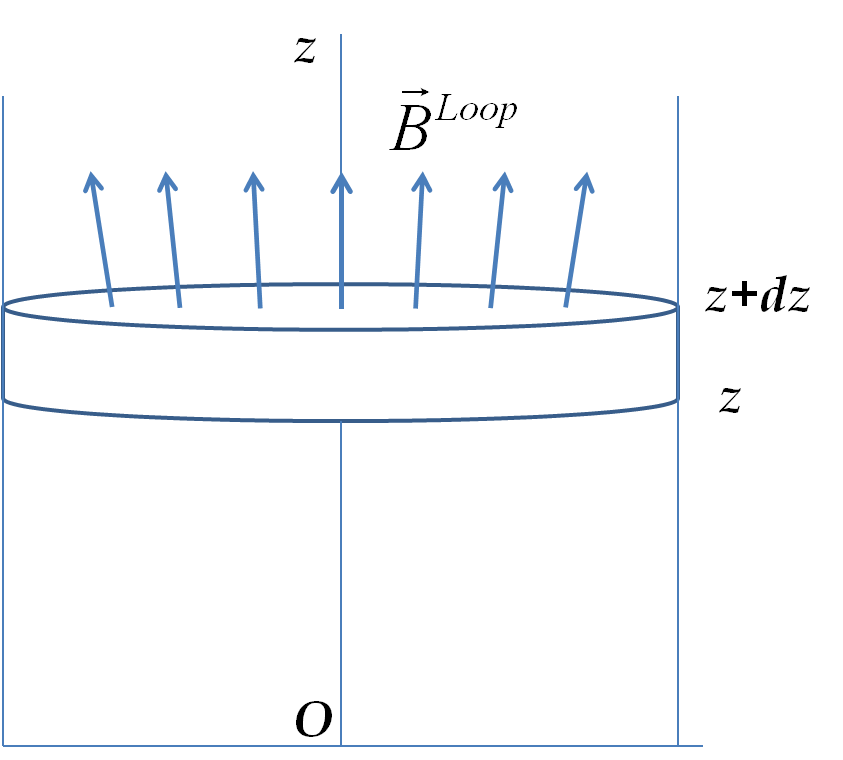

In the approximation \(a\lt \lt R\text{,}\) the magnetic field at a point in the solenoid will be approximately the same as the value at the center of solenoid coil. Since the magnetic field of the current in the outer ring depends on the distance \(|z|\) from the center of the ring, we can set up magnetic flux \(d\Phi_1\) through loops of the solenoid between \(z\) and \(z+dz\text{.}\)

Figure 42.1.7.

Since, there are \(n dz\) loops of solenoid within a distance \(dz\text{,}\) the flux through the surface attached to this part of the solenoid will have \(n dz\) times flux through one loop at \(z\text{.}\) Therefore, \(d\Phi_1\) is given as

\begin{equation} d\Phi_1 = B_z^{\text{Loop}}\pi a^2ndz, \label{eq-mutual-ind-ex-1}\tag{42.1.6} \end{equation}

where \(B_z^{\text{Loop}}\) is the \(z\)-component of the magnetic field of the current in the outer loop, which has been worked out in the section on Biot-Savart law.

\begin{equation} B_z^{\text{Loop}} = \frac{\mu_0}{2}\frac{IR^2}{\left(R^2+z^2\right)^{3/2}}\ \ \ \text{(on axis.)} \label{eq-mutual-ind-ex-2}\tag{42.1.7} \end{equation}

Putting \(B_z^{\text{Loop}}\) from Eq. (42.1.7) into Eq. (42.1.6) and integrating from \(z=-\infty\) to \(z=\infty\) gives the following.

\begin{equation*} \Phi_1 = \pi\mu_0 n a^2 I. \end{equation*}

Dividing by current gives the mutual inductance

\begin{equation*} \mathcal{M}^{\prime} = \pi\mu_0 n a^2, \end{equation*}

which is the same as the formula of mutual inductance found by sending a current through the solenoid instead of through the outer circular wire.

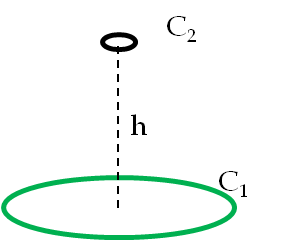

A circuit \(C_1\) consists of a circular loop of radius \(R_1\text{.}\) Another circuit \(C_2\) of a circular loop of radius \(R_2\) is placed so that their centers are on the same line and the two circles are in parallel planes as shown Figure 42.1.9. Let \(h\) be the distance between the two centers. Find their mutual inductance. Assume \(h \gg R_1\) and \(R_1\gg R_2\text{.}\)

Figure 42.1.9.
Hint

Use current in the larger loop. Also, make sure you take appropriate limits.

Answer

\(\frac{\pi\mu_0}{2} \frac{R_1^2R_2^2}{h^3}\text{.}\)

Solution

Note that to find the magnetic flux through any loop we need the magnetic field at all points of a surface attached to the loop. In the present situation, if we calculate flux \(\Phi_{2}\) of magnetic field of a current \(I_1\) in \(C_1\) through a flat surface attached to loop \(C_2\text{,}\) all the points of this surface will be close to the axis of loop \(C_1\text{.}\) Therefore, it is possible to assume that the magnetic field is uniform over the surface attached to the loop \(C_2\text{.}\) With this assumption, flux \(\Phi_{2}\) can be obtained without much effort.

Contrast this to the choice of a current in loop \(C_2\) and trying to calculate the magnetic flux through the loop \(C_1\text{.}\) Since loop \(C_1\) is much bigger than the loop \(C_2\text{,}\) we cannot assume that the magnetic field at all points of a surface attached to \(C_1\) will be constant, which would make this calculation difficult.

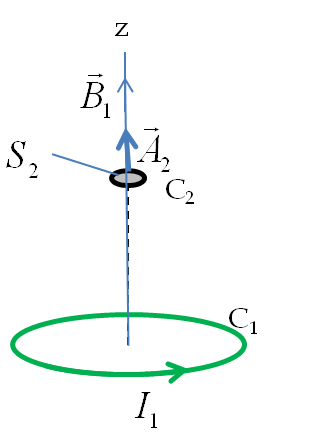

Proceeding with the first choice, we now write down the magnetic field \(\vec B_1\) at a point on the axis of \(C_1\text{.}\) This was calculated in an earlier chapter on Biot-Savart Law. For the current direction shown in figure and the \(z\) axis chosen, the magnetic field \(\vec B_1\) at the center of loop \(C_2\) is

\begin{equation*} \vec B_1 = \frac{\mu_0I_1R_1^2}{2\left( R_1^2 + h^2 \right)^{3/2}} \hat u_z. \end{equation*}

Applying the criterion \(h \gt \gt R_1\) this simplifies to

\begin{equation*} \vec B_1 = \frac{\mu_0I_1R_1^2}{2 h^3} \hat u_z. \end{equation*}

Assuming \(\vec B_1\) be the same at all points of the loop \(C_2\) and taking the direction of vector area elements of a flat surface attached to loop \(C_2\) in the positive \(z\) direction as well, we obtain the magnetic flux \(\Phi_{2}\) as

\begin{equation*} \Phi_{2} \approx \frac{\mu_0I_1R_1^2}{2 h^3} \times \pi R_2^2. \end{equation*}

Factoring out \(I_1\) we find the mutual inductance

\begin{equation*} \mathcal{M} =\frac{\pi\mu_0}{2} \frac{R_1^2R_2^2}{h^3}. \end{equation*}

Note that this expression is symmetric in \(1\leftrightarrow2\text{.}\) If we call this \(\mathcal{M}\) as \(\mathcal{M}_{12}\text{,}\) and \(\mathcal{M}\) we would have obtained by a current in loop \(C_2\) as \(\mathcal{M}_{21}\text{,}\) both being this same expression.

\begin{equation*} \mathcal{M}_{12} = \mathcal{M}_{21} = \frac{\pi\mu_0}{2} \frac{R_1^2R_2^2}{h^3}. \end{equation*}

A small solenoid loop \(C_1\) of length \(L_1\text{,}\) \(N_1\) turns, and a circular cross-section of radius \(R_1\) is placed inside a very long solenoid loop of length \(L_2\text{,}\) \(N_2\) turns, and a circular cross-section of radius \(R_2\text{.}\) Calculate the mutual inductance of the two solenoids assuming \(L_1\ll L_2\text{.}\)

Hint

Try current in the larger solenoid and compute its flux through the smaller solenoid.

Answer

\(\pi \mu_0 \frac{N_1 N_2R_1^2}{L_2}\text{.}\)

Solution

Since the magnetic field of an infinitely long solenoid is known, we will use current in the longer solenoid and calculate the magnetic flux of this current through the smaller solenoid to figure out the mutual inductance of the two.

We introduce a current \(I\) in the larget solenoid. This will produce a uniform magnetic field \(\vec B_2\) inside the solenoid that has the direction along the axis of the solenoid and the magnitude given by

\begin{equation*} \text{Magnitude: } B_{2} = \mu_0 \frac{N_2}{L_2} I. \end{equation*}

The magnetic flux \(\Phi_{1}\) through a surface attached to the coils of the solenoid loop \(C_1\) can be approximated to equal \(N_1\) times the magnetic flux through one coil of solenoid \(C_1\text{.}\)

\begin{equation*} |\Phi_{1}| = \mu_0 \frac{N_2}{L_2} I\times N_1\pi R_1^2. \end{equation*}

Dividing out \(I\) gives the following for the mutual inductance of the two solenoids.

\begin{equation*} \mathcal{M} =\pi \mu_0 \frac{N_1 N_2R_1^2}{L_2}. \end{equation*}

A single loop of wire of radius \(a\) is inside and coaxial with a cylindrical solenoid of length \(L\text{,}\) radius \(b\) and \(n\) turns per unit length, where \(b\ll L\text{.}\) Call the solenoid circuit 1 and the loop circuit 2. Find the mutual inductance. Indicate where the assumption \(b\ll L\) is used in your derivation

Hint

Think of solenoid as infinitely long solenoid.

Answer

\(\mathcal{M} = \pi \mu_0\:n\: b^2\text{.}\)

Solution

For calculational purpose we introduce current in one of the circuits whose magnetic field is easy to work out and use in the subsequent calculation. Since \(L\gg b\text{,}\) we can assume solenoid to be infinitely long. An infinitely long solenoid has constant the magnetic field inside the solenoid and zero outside.

\begin{equation*} B_\text{in} = \mu_0\:n\:I, \end{equation*}

where \(n\) is the number of turns per unit length in the solenoid. Now, we need the flux of this magnetic field through the second circuit. Since the \(B\) of the solenoid is perpendicular to the area of the external loop circuit and non-zero only within the solenoid area of cross-section, we will get the following for the flux through the second circuit.

\begin{equation*} \Phi_{\textrm{through 2}} = \mu_0\:n\:I\times \pi b^2. \end{equation*}

Dividing this by \(I\) will give the mutual inductance.

\begin{equation*} \mathcal{M} = \pi \mu_0\:n\: b^2. \end{equation*}
