Section 37.2 Microscopic View of Magnetic Materials

The magnetism of a material is due to the magnetic properties of the constituent particles, electrons, protons and neutrons of their atoms. Electrons, protons and neutrons each have their magnetic dipole moments, and their vector sum gives the net magnetic dipole moment of the atom.
However, due to the low mass of electrons compared to protons and neutrons the electronic contribution to the net magnetic dipole moment is dominant unless electronic magnetic dipole moment happens to be zero. Therefore, in the following, we will ignore the contributions of protons and neutrons.
The magnetic dipole moment of an electron in an atom comes from two sources:
  1. Orbital magnetic dipole moment due to the motion of elctron about the nucleus. We will denote the corresponding magnetic dipole moment by \(\vec \mu_l\text{.}\)
  2. Quantum spin. Electron is intrinsically magnetic with a magnetic dipole moment due to an intrinsic angular momentum, called spin. We will denote the corresponding magnetic dipole moment by \(\vec \mu_s\text{.}\)
The net angular momentum of an atom will be a vector sum of the two angular momenta of every electron in the atom.
\begin{equation} \vec \mu_\text{atom} \approx \sum_\text{electrons} \left( \vec \mu_l + \vec \mu_s\right) \tag{37.5} \end{equation}

Subsection 37.2.1 Orbital Angular Momentum and Magnetic Dipole Moment

Here, I will use fictitious current loop model of a magnetic dipole moment to show that when an electron moves in an orbit, it will develop a magnetic dipole moment due to its motion. The current loop model states that magnetic moment can be written as a product of current and an area of a fictitious closed circuit.
\begin{equation} \mu = \left(I A\right)_\text{model}.\tag{37.6} \end{equation}

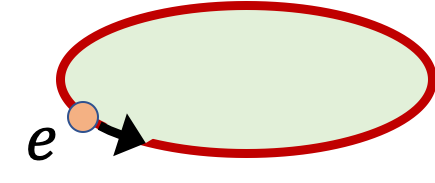

Suppose the circuit is formed by an electron moving uniformly with speed \(v\) in a circle of radius R. Therefore, \(I\) and \(A\) will be
\begin{equation*} I = \frac{|e|v}{2\pi R},\ \ A = \pi R^2. \end{equation*}
This will correspond to a magnetic dipole moment
\begin{equation*} \mu = \frac{|e|}{2}\, v R. \end{equation*}
In this formula, we can replace \(vR\) by angular momentum \(L\) divided by mass of electron, \(m_e\text{.}\)
\begin{equation*} \mu = \frac{|e|}{2m}\, L. \end{equation*}
We denote this dipole moment by \(\mu_l\text{,}\) to indicate that it is from the angular momentum due to the orbital motion.
\begin{equation} \mu_l = \dfrac{|e|}{2m_e} L.\tag{37.7} \end{equation}
In general, for any charged particle, we expect that there will be a magnetic moment due to its orbital angular momentum \(L\text{,}\) with the proportionality depending on its charge \(q\) and mass \(m\text{.}\)
\begin{equation} \mu_l = \dfrac{|q|}{2m} L.\tag{37.8} \end{equation}
The quantity \(|q|/2m \) is called the gyromagnetic ratio of the particle, usually denoted by \(g_q\text{,}\) where the subscript is an identifier for the particle.
\begin{equation*} g_q = \dfrac{|q|}{2m}, \end{equation*}
For an electron the value of gyromagnetic ratio is
\begin{equation} g_e = \dfrac{|e|}{2m_e} \approx 8.78 \times 10^{10}\text{ C/kg}.\tag{37.9} \end{equation}
For a proton, it is about \(1/2000\) times smaller due to the mass of proton being about \(2000\) times larger.
Since, conventional current is in the opposite direction to the motion of electron, the direction of magnetic moment vector of an electron will be in the opposite direction to its angular momentum. Thus, we will write the vector relation between orbital magnetic moment and orbital angular momentum as
\begin{equation*} \vec \mu_l = - g_e\, \vec L, \end{equation*}
It turns out that in SI units, the value of \(\mu\) due to electron’s motion in atoms are very tiny numbers. More commonly, we express it in a unit called Bohr magneton, denoted by \(\mu_B\text{.}\)
\begin{equation} \mu_B = \frac{|e|\hbar}{2 m_e} = g_e\,\hbar,\quad (\text{orbital})\tag{37.10} \end{equation}
where \(\hbar\) (read h-bar) is Planck constant \(h\) divided by \(2\pi\text{.}\)
\begin{equation*} \hbar = \dfrac{h}{2\pi} = 1.0545718 \times 10^{-34} \text{ m}^2\text{kg / s}. \end{equation*}
In terms of \(\mu_B\) the orbital magnetic dipole moment of electron that has orbital angular momentum \(\vec L\) will be
\begin{equation} \vec \mu_l = - \dfrac{\vec L}{\hbar}\, \mu_B.\tag{37.11} \end{equation}
In atoms, orbital angular momentum \(L\) is usually a small multiple of \(\hbar\text{,}\) and hence, magnetic dipole moments are a small multiple of \(\mu_B\text{.}\)
Classically, the magnitude of orbital angular momentum \(L\) can be any positive real number with units, of course. But, quantum mechanically, \(L\) can only have certain values given by the following formula.
\begin{equation} L = \sqrt{l(l+1)}\, \hbar,\ \ l = 0, 1, 2, 3, \cdots.\tag{37.12} \end{equation}
That is, only \(L=0\text{,}\) \(L = \sqrt{2}\, \hbar\text{,}\) \(L = \sqrt{6}\, \hbar\text{,}\) \(L = \sqrt{12}\, \hbar\text{,}\) etc are allowed. Therefore, orbital magnetic dipole moment will also be quantized in the same way and will have only certain values.
\begin{equation} \mu_l = \sqrt{l(l+1)}\, \mu_B,\ \ l = 0, 1, 2, 3, \cdots.\tag{37.13} \end{equation}
There is additional twist to the orbital angular momentum quantization. For any orbital angular momentum \(|\vec L| = l\text{,}\) the value of the Cartesian components of angular momentum, say the values of \(L_z\) can range from \(-l\) to \(+l\) in integral steps. That is \(L_z\) can have the following \(2l+1\) values.
\begin{equation*} L_z = -l,\ -l+1,\ -l+2, \cdots, l-2, l-1, l. \end{equation*}
Let’s write this succinctly as
\begin{equation} L_z = l_z \hbar,\ \ l_z = 0, \pm 1, \pm 2, \pm 3, \cdots, \pm l.\quad (\text{orbital})\tag{37.14} \end{equation}
This says that orbital magnetic moment along a Cartesian axis will also be integral multiples of a Bohr magneton.
\begin{equation} \mu_{lz} = l_z \mu_B,\ \ l_z = 0, \pm 1, \pm 2, \pm 3, \cdots, \pm l. \quad (\text{orbital})\tag{37.15} \end{equation}

Subsection 37.2.2 Spin Magnetic Dipole Moment

Every electron (and most elementary particles) has an intrinsic angular momentum called spin regardless of the state of motion of the electron. The name “spin” for this property of an electron is a misnomer and suggests that the electron is in rotational motion about an axis through its center. If that were the case, angular momentum of such a spinning motion will be zero since moment of inertia about axis through a point particle would be zero. Hence, spin of an electron is best regarded as an intrinsic property and not to be taken literally.
The spin property accounts for the fact that electrons appear to have additional angular momentum than one can account for based only on the motion of the electron.
Unlike the magnitude of the orbital angular momentum, which can take many values, depending upon integer \(l\) in Eq. (37.13), a measurement of the magnitude of the spin angular momentum of an electron, to be denoted by \(\vec S\text{,}\) results in only one value for the magnitude. For an electron, the magnitude \(S=\frac{\sqrt{3}}{2}\hbar\text{.}\) In general, for any particle, we can write the magnitude \(S\) as
\begin{equation} S = \sqrt{ s\left( s + 1 \right)}\, \hbar,\tag{37.16} \end{equation}
where \(s\) is called the spin of the particle. For electron
\begin{equation*} s = \dfrac{1}{2}. \end{equation*}
Proton and neutrons also have \(s=\frac{1}{2}\text{.}\) As a matter of fact, \(s\) can only be positive integer multiples of \(\frac{1}{2}\text{.}\) Particles with odd multiples are called Fermions and those with 0 and even multiples are called Bosons.
A measurement of the spin angular momentum of an electron along any direction, say the \(z\)-axis, results in only the following two values.
\begin{equation*} S_z = s_z\, \hbar,\ \ s_z = \pm\dfrac{1}{2}, \end{equation*}
similar to the way \(L_z\) works out, except now the value is \(1/2\) instead of integers.
Just as the orbital angular momentum creates a magnetic dipole moment for the electron, spin angular momentum creates additional magnetic dipole moment for the electron. However, the gyromagnetic ratio of the spin angular momentum is not the same as the gyromagnetic ratio of the orbital angular momentum. Actually, for electrons, each unit of spin angular momentum is actually about twice as effective in creating magnetic moment as orbital angular momentum.
The factor by which you will need to multiply gyromagnetic ratio of orbital angular momentum to get the g-factor of spin angular momentum is called the \(g\) factor. It is often denoted by \(g_S\text{.}\)
\begin{equation} g_{e,\text{spin}} = g_S\, g_e = g_S\, \dfrac{\mu_B}{\hbar}.\tag{37.17} \end{equation}
\(g_S\) is one of most precisely known number in physics with reported value at NIST
 1 
in May/2020 to be
\begin{equation*} g_S = 2.00231930436256 \left(1 \pm 1.7\times10^{−13} \right). \end{equation*}
We will just use \(g_S=2.0\) for electron. I gave you the more precise value for you to marvel at how many decimals have actually been measured! The \(g\) factor of protons, neutrons, and other particles are different.
Therefore, magnetic moment contribution of the spin angular moment will be
\begin{equation*} \vec \mu_S = g_{e,\text{spin}}\ \vec S = g_S\, \vec S\, \dfrac{\mu_B}{\hbar} , \end{equation*}
with Cartesian components given by
\begin{equation} {\mu_S}_z = \pm\dfrac{1}{2}\, g_S\, \mu_B = \pm\mu_B,\tag{37.18} \end{equation}
and total spin magnetic moment to be
\begin{equation} \mu_S = \dfrac{\sqrt{3}} {2}\, g_S\, \mu_B = \sqrt{3}\,\mu_B .\tag{37.19} \end{equation}

Subsubsection 37.2.2.1 Total Angular Momentum

If you hava e particle with orbital angular momentum \(\vec L\) and spin angular momentum \(\vec S\text{,}\) you will get the total angular momentum \(\vec J\) by vectorially adding them.
\begin{equation*} \vec J = \vec L + \vec S. \end{equation*}
However, quantum picture is a lot more complicated. Recall that we have magnitudes \(|\vec L|\) and \(|\vec S|\) are given in terms of orbital angular momentum quantum number \(l\) and spin qunatum number \(s\) as follows.
\begin{equation*} |\vec L| = \hbar\,\sqrt{l(l+1)},\quad |\vec S| = \hbar\,\sqrt{s(s+1)}. \end{equation*}
The values of \(|\vec J|\) can also be written in terms of its own quantum number \(j\) in a similar way
\begin{equation*} |\vec J| = \hbar\,\sqrt{j(j+1)}. \end{equation*}
But \(j\) can be any of the values in the following range.
\begin{equation*} j = \{|l-s|, |l-s|+1, |l-s|+2, \cdots, l+s \} \end{equation*}
The Cartesian components work out more simply as follows for \((l,s)\) pair of orbital and spin.
\begin{align*} S_z \amp = -s\,\hbar, (-s+1)\,\hbar, \cdots, s\,\hbar \\ L_z \amp = -l\,\hbar, (-l+1)\,\hbar, \cdots, l\,\hbar \\ J_z \amp = (-s-l)\,\hbar, (-s-l+1)\,\hbar, (-s-l+2)\,\hbar,\cdots, (s+l)\,\hbar \end{align*}
A Cartesian component of magnetic dipole moment is easy to work out also with the result.
\begin{equation*} \mu_z = \mu_{l,z} + \mu_{s,z} = L_z\, \frac{\mu_B}{\hbar} + g_S\, S_z\, \frac{\mu_B}{\hbar} = \left( L_z + g_S\,S_z \right)\,\frac{\mu_B}{\hbar}. \end{equation*}
If we write
\begin{equation*} S_z = m_s\,\hbar,\quad L_z = m_l\,\hbar, \end{equation*}
with \(m_s\) and \(m_l\) in the allowed numerical values, then, \(z\)-component of magnetic dipole moment is simply a multiple of the Bohr magneton.
\begin{equation*} \mu_z = \left( m_l + g_S\,m_s \right)\, \mu_B. \end{equation*}
Example 37.5.
Find the possible \(z\)-components of magnetic moments of an electron in an atom that has orbital angular momentum of \(l=3\text{.}\)
Solution.
For \(l=3\text{,}\) \(m_l\) can have any of the seven values:
\begin{equation*} m_l = -3, -2, -1, 0, 1, 2, 3. \end{equation*}
Since \(m_s\) of electron has two choices: \(-\frac{1}{2}\) and \(+\frac{1}{2}\text{.}\) therefore, we have \(7\times 2 = 14\) choices for \(m_l + g_S\,m_s\text{.}\) Use \(g_S = 2\text{.}\)
\begin{align*} \amp -4, -3, -2, -1, 0, 1, 2, \quad (\text{using } m_s=-1/2)\\ \amp -2, -1, 0, 1, 2, 3, 4. \quad (\text{using } m_s = + 1/2) \end{align*}
Some of the combinations of different \(m_l\) and \(m_s\) give us the same values. They are different quantum states with the same magnetic dipole moment. The \(z\)-component of magnetic moment will be obtained by multiplying these number by \(\mu_B\text{.}\)

Subsubsection 37.2.2.2 Pairing of Spins

The two values of the spin projections along a Cartesian axis are called the spin up and the spin down states respectively. The rules of quantum mechanics often forces the pairing of up and down spins so that atoms that have an even number of electrons often end up with zero net spin angular momentum in any direction. In these cases, the magnetism of a material comes from the orbital angular momentum.
Therefore, the effect of the spin magnetic moment will be present when spins of electrons cannot be paired up. This will definitely happen if a particular atom has either an odd number of electrons or where spins of different electrons are not paired up. From our formulas above, we see that the spin magnetic moment of a single elctron along any axis is either \(+1\ \mu_B\) or \(-1\ \mu_B\text{.}\)
If we place atoms with magnetic dipole moment due to unpaired spins or non-zero orbital angular momentum in an external magnetic field, the alignment of atomic dipole moments give rise to macroscopically observable magnetic phenomenon.
For instance, if the magnetic dipole moments of \(N\) atoms, each with a dipole moment of, say 1 \(\mu_B\text{,}\) are line up in one direction, then the net magnetic dipole moment of the sample will be \(N\mu_B\text{.}\) How large can these number be? Suppose \(N\) is of the order of the Avogadro number, then the net magnetic dipole moment will be
\begin{equation*} \mu \sim 6\times 10^{23}\times 9\times 10^{-24} \text{A.m}^2 = 5\ \text{A.m}^2 . \end{equation*}
This is equivalent to the magnetic dipole moment of a whopping \(500\text{ A}\) current in a \(10 \text{ cm} \times 10 \text{ cm}\) loop.

Example 37.6. Calculating Magnetic Moments of Atoms.

Determine the magnetic moment of (a) a sodium atom which has an unpaired electron in \(l_z = 0\) and the spin up state, and (b) an electron in the carbon atom that is in spin up state and has \(l_z = 1\text{.}\) Use the \(z\)-axis as the axis for the angular momentum vector.
Answer.
(a) \(\mu_B\text{,}\) (b) \(2\mu_B\text{.}\)
Solution.
(a) Since \(l_z = 0\text{,}\) the orbital angular momentum along the \(z\)-axis is zero. That means magnetic moment will be all from the spin of the electron.
\begin{equation*} \mu_z = {\mu_S}_z = + \mu_B. \end{equation*}
(b) Now, both orbital and spin will contribute. Since they are in the same direcion, they will add together.
\begin{equation*} \mu_z = \mu_{\text{orbital},z} + \mu_{\text{spin},z} = 1\times \mu_B + \mu_B = 2\mu_B. \end{equation*}

Example 37.7. Magnetic Moment of a Helium Atom in an Electronically Excited State.

An excited helium atom has two electrons in different states, one with \(l_z = 0\text{,}\) and spin down, and the other with \(l_z = + 2 \text{,}\) and spin up state. What is the magnetic moment of the atom? Use the \(z\)-axis as the axis of projections of the angular momentum vectors.
Answer.
\(2\mu_B\text{.}\)
Solution.
Adding the \(z\) magnetic moments of the two electrons we get
\begin{align*} \mu_z \amp = \mu_{1z} + \mu_{2z}\\ \amp = \left[ \mu_{\text{orbital},z} + \mu_{\text{spin},z} \right]_1 + (1\rightarrow 2)\\ \amp = \left[(0-1)\mu_B \right]_1 + \left[(2+1)\mu_B \right]_2\\ \amp = -\mu_B + 3 \mu_B = 2\mu_B. \end{align*}
